Products · Gaming monitors
Mini-LED Gaming Monitors, 27″ to 34″
Eleven models built on Mini-LED backlights from 384 to 2304 local dimming zones, with peak brightness from 1000 to 2000 nits. Fast-IPS, IPS, VA and HVA panels; 165 or 170 Hz on every high-refresh model. Available for OEM and ODM programmes from our own production lines.
Three sizes, eleven models
Start with the size, then choose the panel. Within each size the models differ mainly in dimming-zone count, panel technology and how far the colour is calibrated. The table links to the full specification for each size.
| Size | Resolution | Refresh | Dimming zones | Models |
|---|---|---|---|---|
| 27″ | QHD 2560 × 1440 or UHD 3840 × 2160 | 165–170 Hz (60 Hz on UHD) | 384 – 1152 | 6 |
| 31.5″ | QHD 2560 × 1440 or UHD | 165 Hz (60 Hz on UHD) | 576 | 3 |
| 34″ ultrawide | WQHD 3440 × 1440, 21:9, R1500 curved | 165 Hz | 756 – 2304 | 2 |
Why Mini-LED, in plain terms
A conventional edge-lit LCD has one backlight for the whole panel, so a bright object on a dark background lifts the black level across the screen. A Mini-LED backlight is divided into independently driven zones. More zones means the bright area can be kept smaller, so highlights get brighter without the surrounding black going grey.
THE NUMBER THAT MATTERSThis is the specification line that matters most when you compare our models against each other, and it is the one buyers most often overlook. 384 zones on a 27″ panel is roughly one zone per 24 × 24 mm; 2304 zones on the 34″ is roughly one per 11 × 11 mm. Both are Mini-LED. They do not look the same, and they do not cost the same.
| Model | Size | Panel | Zones | Resolution / refresh | HDR peak |
|---|---|---|---|---|---|
| M27NQH-ST | 27″ | Fast-IPS | 576 | QHD · 170 Hz | 1400 nits |

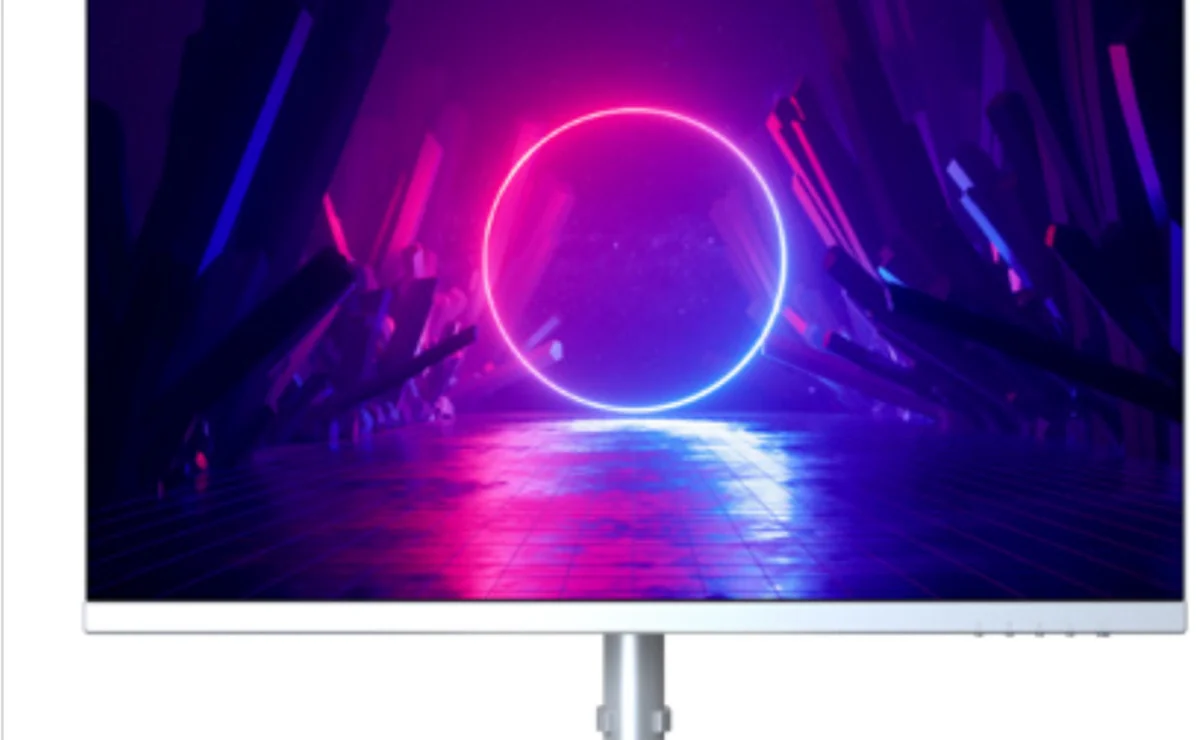

| M27NQC-ST | 27″ | Fast-IPS | 576 | QHD · 165 Hz | 1400 nits |
| M27NQC-STC | 27″ | IPS | 1152 | UHD · 60 Hz | 1400 nits |
| M27NQC-SE | 27″ | VA | 384 | QHD · 165 Hz | 1000 nits |
| M27NQH-SE | 27″ | VA | 384 | QHD · 165 Hz | 1000 nits |
| M27NQF-SE | 27″ | VA | 384 | QHD · 165 Hz | 1000 nits |
| M32AQH-ST | 31.5″ | HVA | 576 | QHD · 165 Hz | 1000 nits |

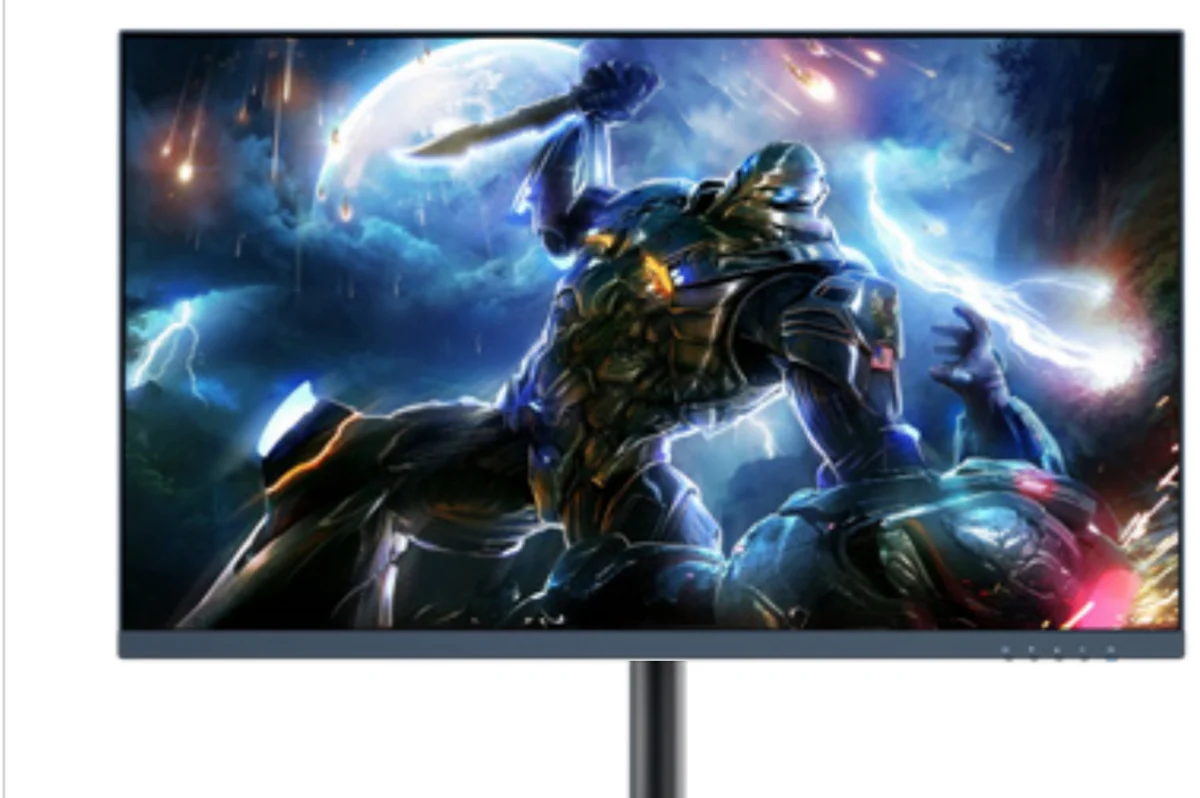

| M32AQH-STA | 31.5″ | IPS | 576 | QHD · 165 Hz | 1400 nits |
| M32AUW-ST | 31.5″ | IPS | 576 | UHD · 60 Hz | 1600 nits |
| M34HWW-ST | 34″ | VA curved | 756 | WQHD · 165 Hz | 1400 nits |

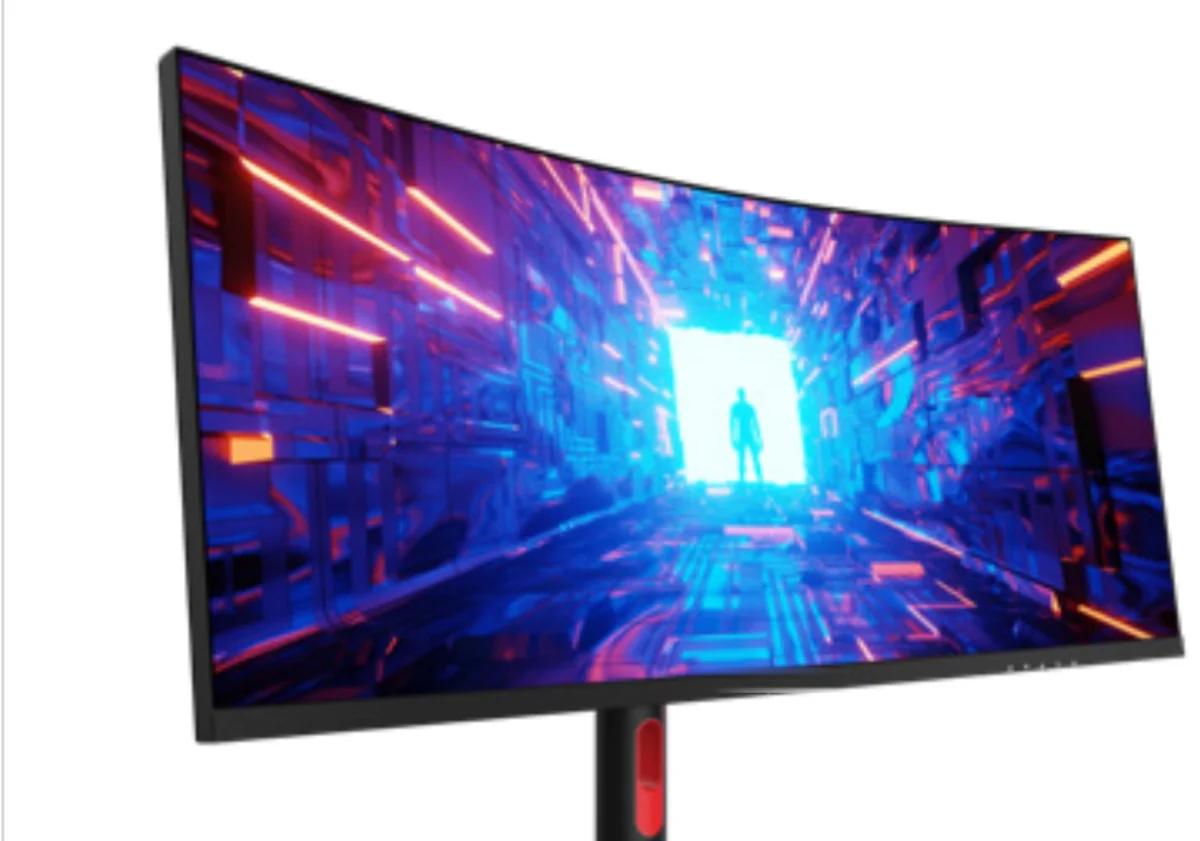

| M34HWW-Pro | 34″ | VA curved | 2304 | WQHD · 165 Hz | 2000 nits |
What is common across the range
| Colour | 97–99% DCI-P3 and 97–99% Adobe RGB. Factory-calibrated to ΔE < 2.0; the two wide-gamut IPS models are calibrated to ΔE < 1.0 |
| Viewing angle | 178° horizontal and vertical on every panel |
| Adaptive sync | FreeSync (Adaptive-Sync) on all models, with Over Drive and on-screen crosshair |
| Picture modes | Scene presets, professional presets, six-axis colour, Gamma control and user hotkeys. PIP/PBP on all but one model |
| Connectivity | DisplayPort 1.4 and two HDMI ports on every model. USB-C with 65 W or 90 W power delivery on the models that carry it — one cable for video, data and charging a laptop |
| Ambient lighting | Rear RGB lighting on eight of the eleven models |
| Mounting | VESA 75 × 75 mm on 27″ and 31.5″; VESA 100 × 100 mm on 34″. Height, tilt, swivel and pivot on the supplied stand |
| Energy | China Grade 1 energy efficiency across the range |
What we can change for your programme
These are our own designs, not a catalogue we resell. Housing colour, stand design, bezel finish, on-screen menu branding, boot logo, packaging and the port selection are all open at the tooling stage. Panel and backlight are fixed per model; everything around them is not. The same applies to our portable monitors and custom display programmes.
Certification for your destination market is quoted with the order. Tell us where the units are going and we will tell you what is already in hand and what has to be applied for.
Specify a gaming monitor programme
Tell us the size, the dimming-zone count you are targeting, the quantity and the destination market. You get a full specification sheet, MOQ, tiered pricing and a lead time within one business day.
