Vehicle displays · 14″
14-inch Android Headrest Monitor
The largest panel in the range, and the newest platform: Rockchip RK3566, full lamination, dual-band Wi-Fi and HDMI out as well as in.
Specification
| Panel size | 14″ |
| Resolution | 1920 × 1080 IPS with tempered glass, full lamination |
| Android | Android 11 or Android 13 |
| Processor | Rockchip RK3566, Cortex-A55 at 1.8 GHz |
| Memory | 2 GB + 32 GB or 4 GB + 64 GB |
| Google certification | Available (AG models) — see below |
| Video | HDMI in and HDMI out, USB, SD |
| Decoding | 1080P H.265; AVI, MKV, MOV, MP3 |
| Retail box | 35.5 × 22.5 × 9.2 cm, 2.20 kg |
| Export carton | 56 × 37 × 24.3 cm, 13.5 kg, 6 pcs |
UNIQUE TO THIS SIZEHDMI out is unique to this size in our range. It lets one unit feed a second screen, which is how most two-seat installations are wired when the customer does not want two independent players.
The platform underneath
Every size in the range shares the same board family, the same mounting approach and the same interface. Choosing a size does not change what the unit can do.
| Panel | IPS touchscreen with 2.5D glass. Newer models use full lamination — no air gap, so no dust between glass and panel |
| Android | Android 9, 11 or 13 depending on model. Rockchip RK3566 on the current generation |
| Memory | 1 GB + 32 GB, 2 GB + 32 GB or 4 GB + 64 GB. Expandable to 128 GB over USB or TF card |
| Screen mirroring | Miracast and AirPlay; HappyCast on the Android 13 models |
| Wireless | Wi-Fi — 2.4 GHz and 5 GHz dual band on current models. Bluetooth 5.0 for wireless headphones |
| Video in and out | HDMI in on every model, HDMI out on the 14″. AV in for a head unit or digital TV |
| Audio | Built-in speakers, 3.5 mm headphone jack and an FM transmitter at 87–108 MHz so audio can go to the car stereo |
| Power | 12 V DC, three ways: DC socket, cigarette-lighter plug or hardwired |
| Operating temperature | −20 °C to +60 °C |
| Interface | 73 car logos and 20 brand user interfaces to choose from; the boot logo is changeable |
| Languages | English, Spanish, French, Arabic, Russian, Japanese, Korean, Italian, German, Chinese |

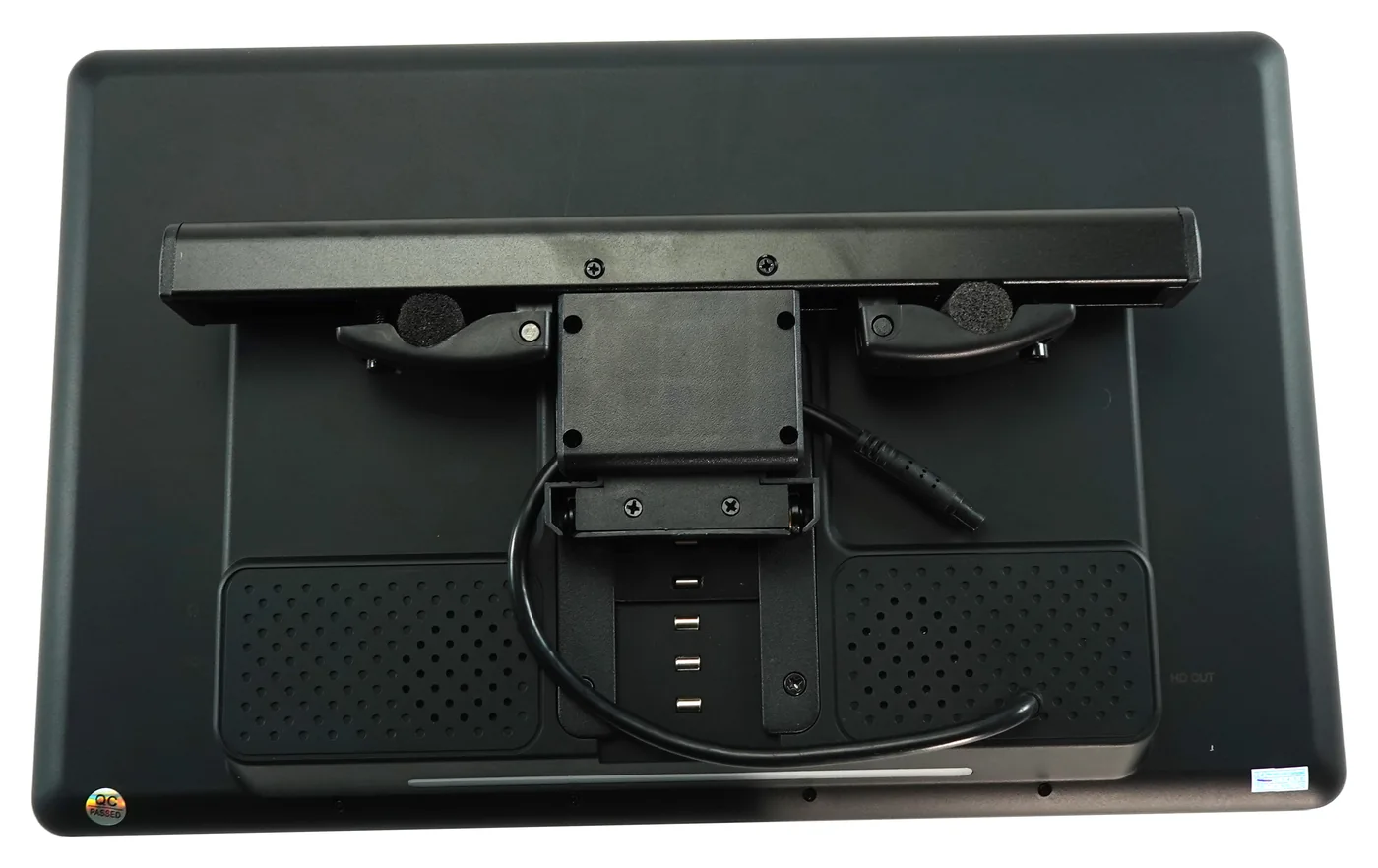

| Mounting | Eight-part adjustable bracket that clamps to the headrest posts. Fits almost any vehicle |

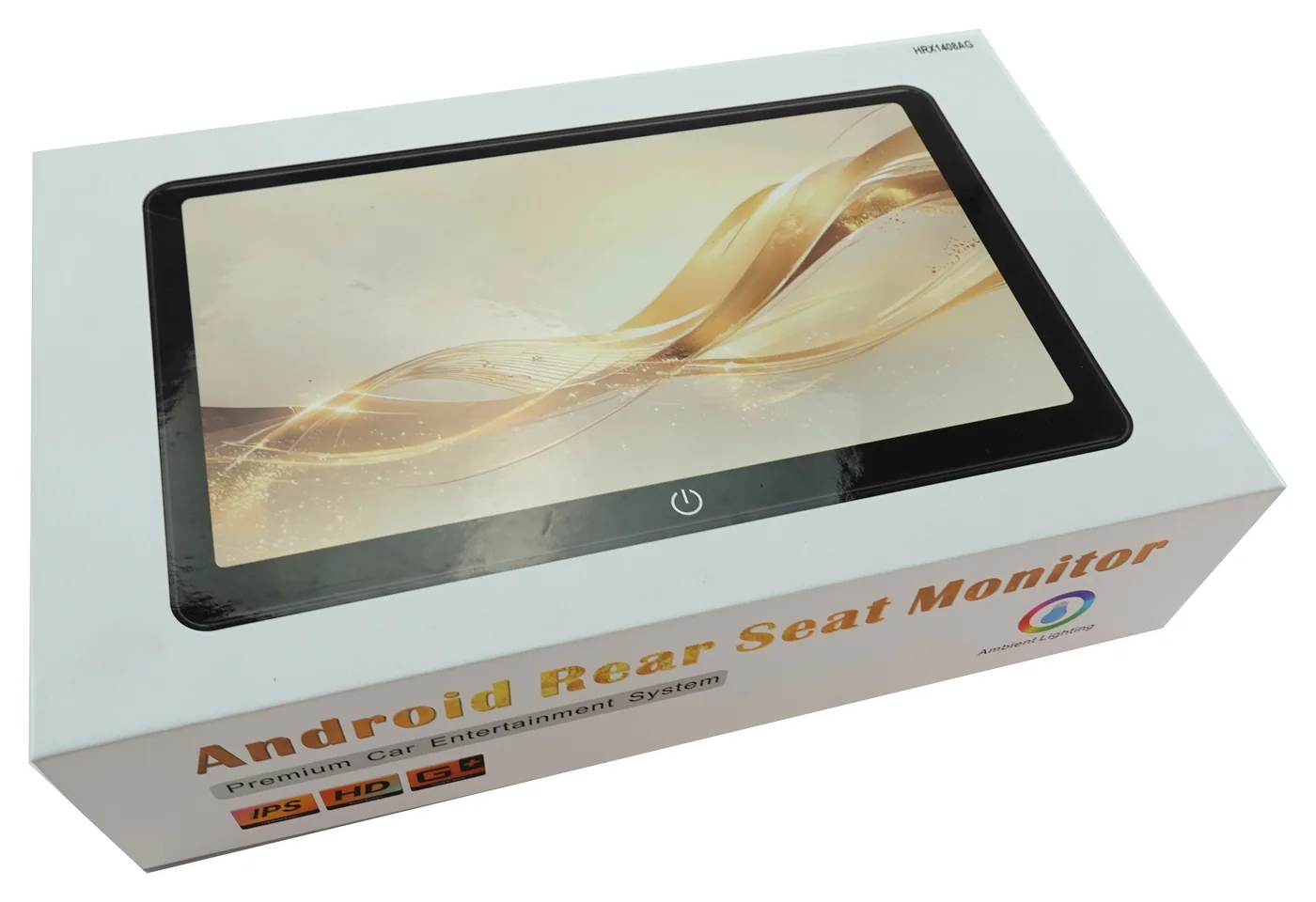

What we ship is the hardware: the unit, the bracket, the harness and the retail packaging. Vehicle installation, content licensing and any fleet software are yours. That division is deliberate — it is what lets us quote small batches and non-standard builds that a turnkey supplier will not take on.
Google certification, and what it actually buys you
Some models in this range carry Google GMS certification (the ones with AG in the model number). It is not a marketing badge — it is the difference between a unit where Netflix and YouTube install and sign in normally, and one where they do not.
Uncertified Android runs the same apps until a service checks device attestation, and then it stops. If your end customers expect streaming to work out of the box, specify an AG model. If the units run your own application or local media, the uncertified build is cheaper and behaves identically for that purpose. Tell us which, before the order is placed — certification is not something that can be added to a unit afterwards.
Specify a vehicle display programme
Tell us the sizes, the quantity, the Android version you need and the destination market. You get a full specification sheet, MOQ, tiered pricing and a lead time within one business day. Sample units ship after order confirmation, with your boot logo applied if you want to see the branding before signing off.
Comparing sizes? The 13.3″ and 11.6″ models run the same board family and the same interface — see the full size table if you are still choosing.
